Teltonika Router Guest Wifi Ağı Oluşturma

Creating a Teltonika Router Guest Wifi Network

How to Create a Guest Wifi Network?

Configuring the router (RUTX)

Before you start configuring the router , turn on “Advanced WebUI” mode . You can do this by clicking the “Basic” button under “Mode” located in the upper right corner of the WebUI.

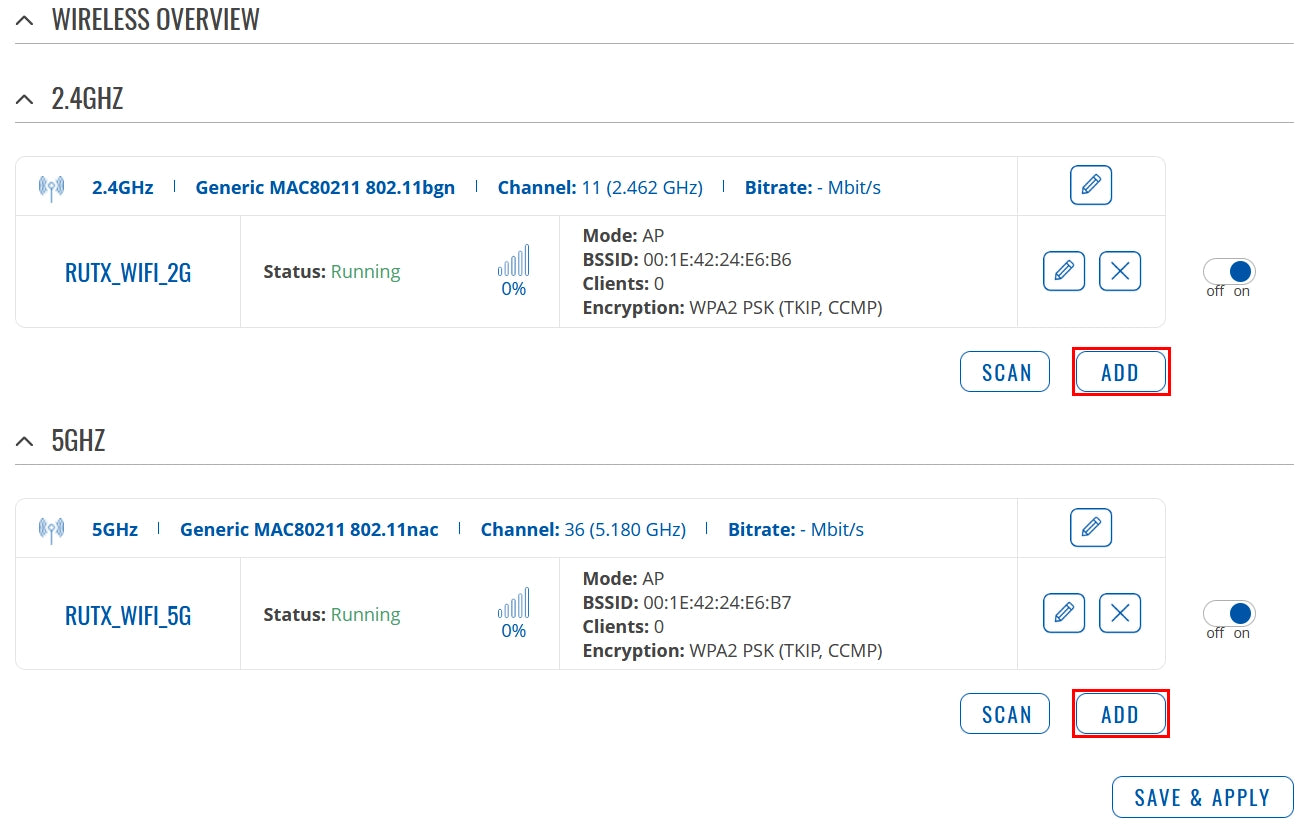

Log in to the router's WebUI, go to Network → Wireless page. Click Add . You can use 2.4GHz or 5GHz WiFi. You will then be directed to the configuration window.

Configuring the router

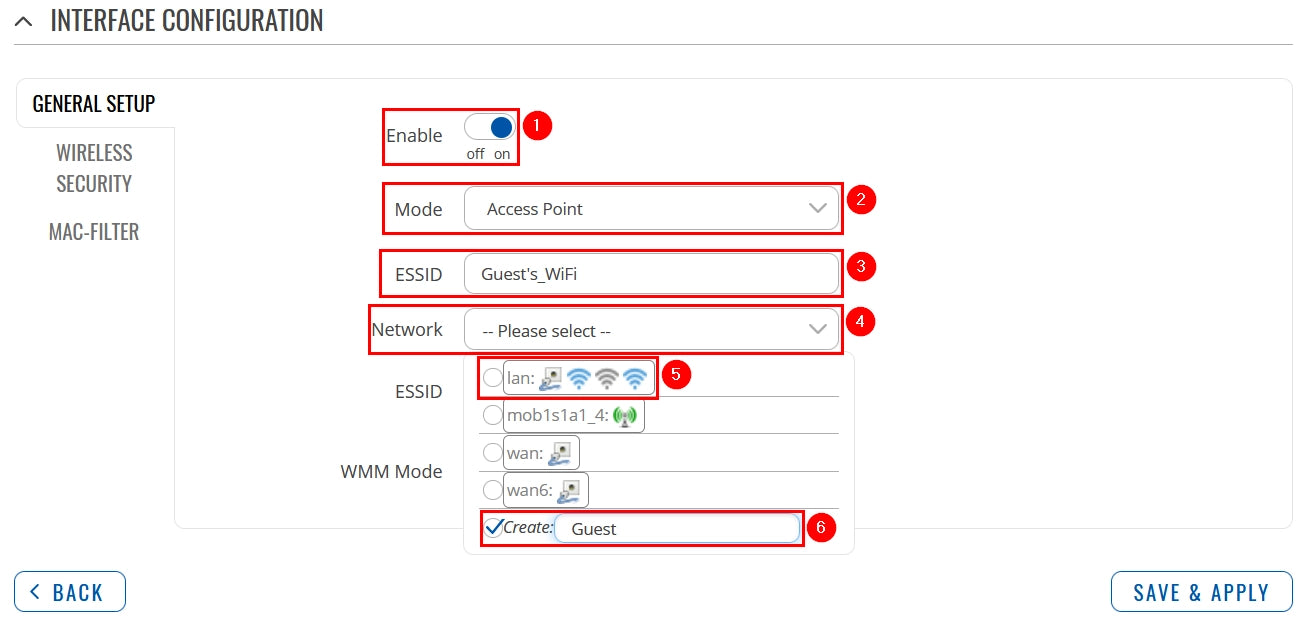

General Setup In the tab enable the following steps :

  1. Activate the example .
  2. Select Access Point mode.
  3. Enter a custom ESSID .
  4. Expand the Network drop-down menu.
  5. Uncheck Lan interface.
  6. Create a new interface, enter a special name ( Guest)

general setup

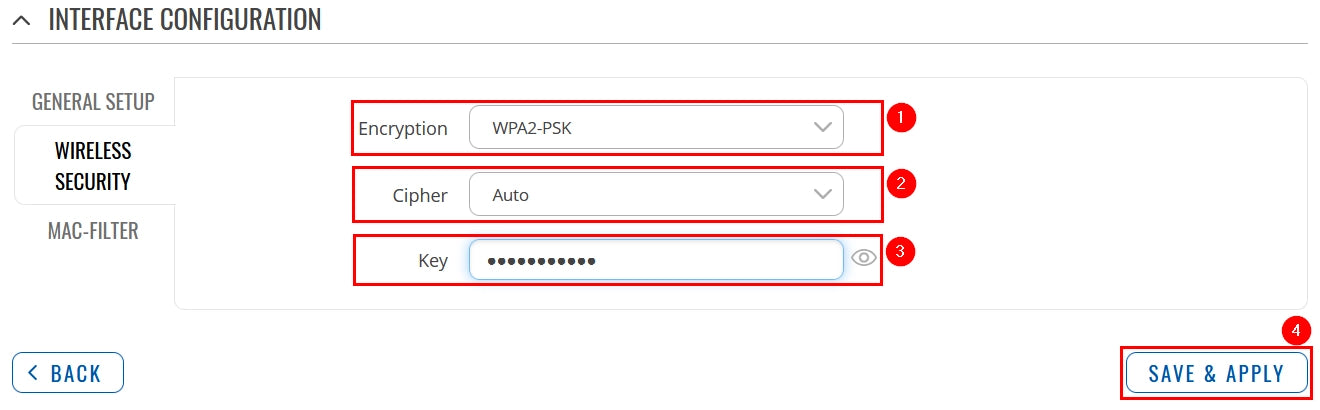

Switch to the Wireless Security tab and do the following:

  1. Select the encryption type.
  2. Select the encryption type.
  3. Enter the key .
  4. Save&Apply Changes.

Go to Network → Interfaces and click Edit next to the LAN interface you just created. then press,

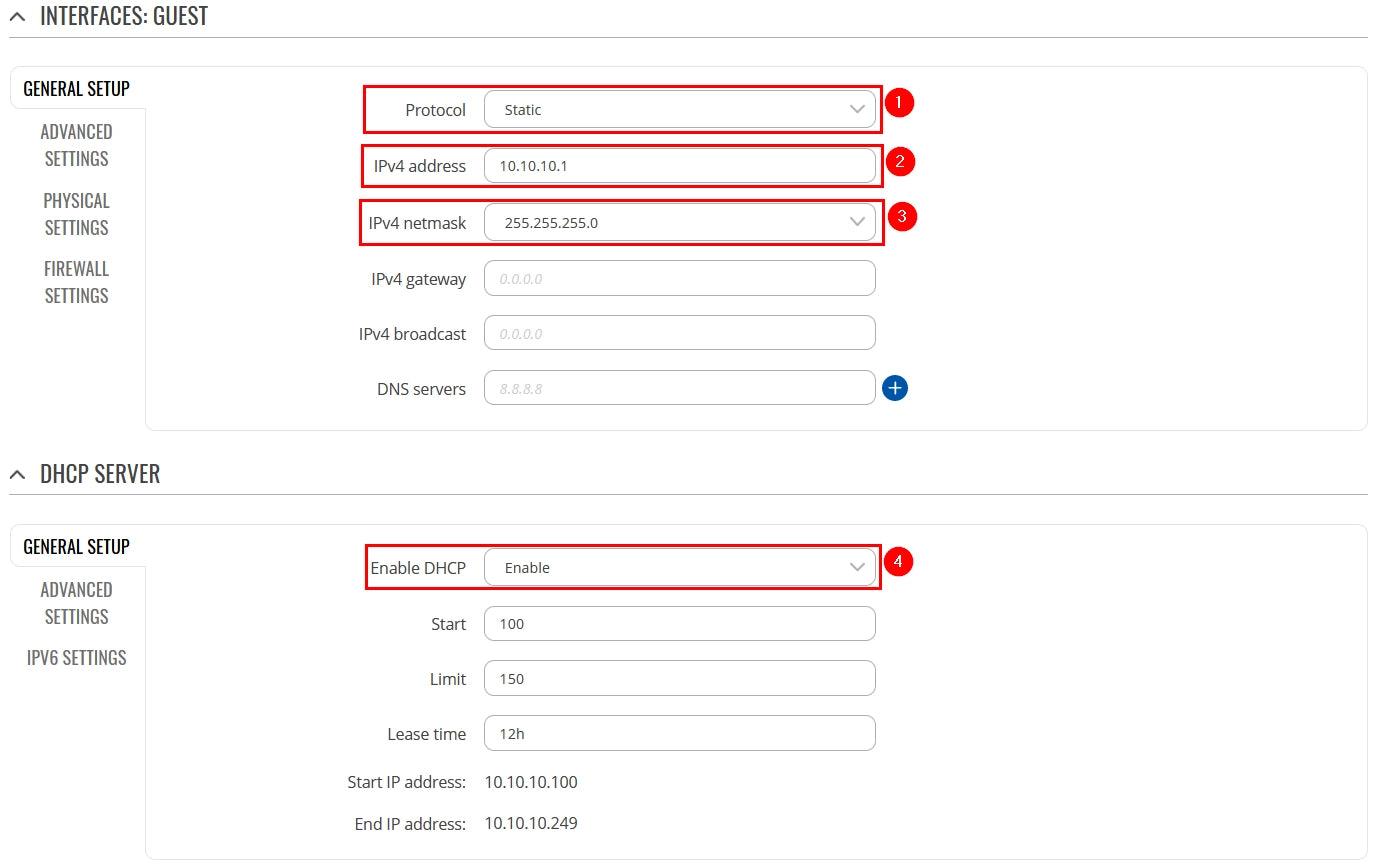

In the General settings section, follow these steps:

  1. Select Protocol – Static. Confirm by clicking “CHANGE PROTOCOL”.
  2. Enter an IPv4 address .
  3. Enter an IPv4 netmask .
  4. Enable DHCP server .
  5. Press Save&Apply .

Go to Network → Firewall → General Settings .

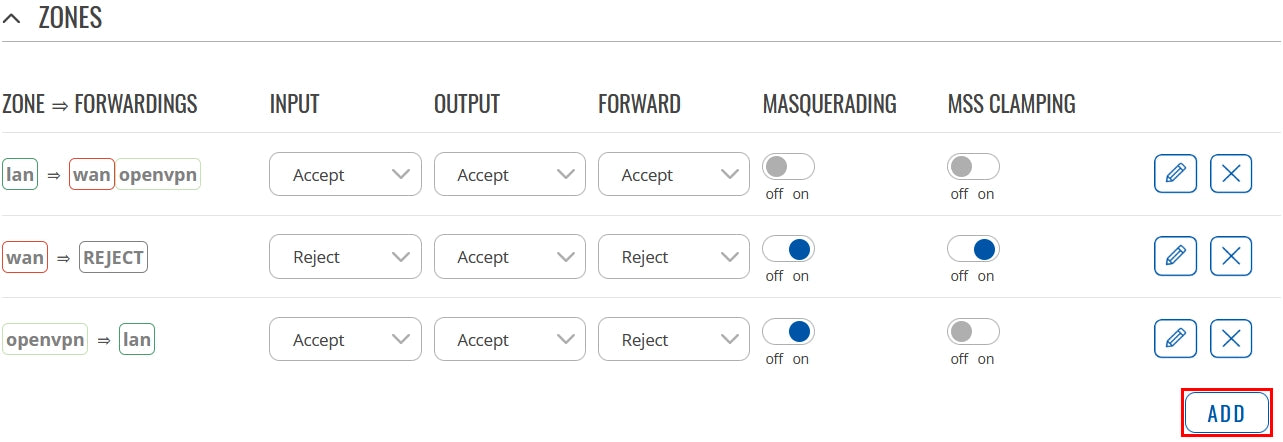

Create a new Zone rule by pressing the add button there. You will then be directed to the configuration window.

On the REGION page, do the following:

  1. Enter a Custom Name .
  2. Add the newly created “Guest” LAN to Covered networks .
  3. For Allow forwarding to target regions, select WAN interfaces.
  4. For Allow routing from target zones, select WAN interfaces.
  5. Save&Apply Changes.

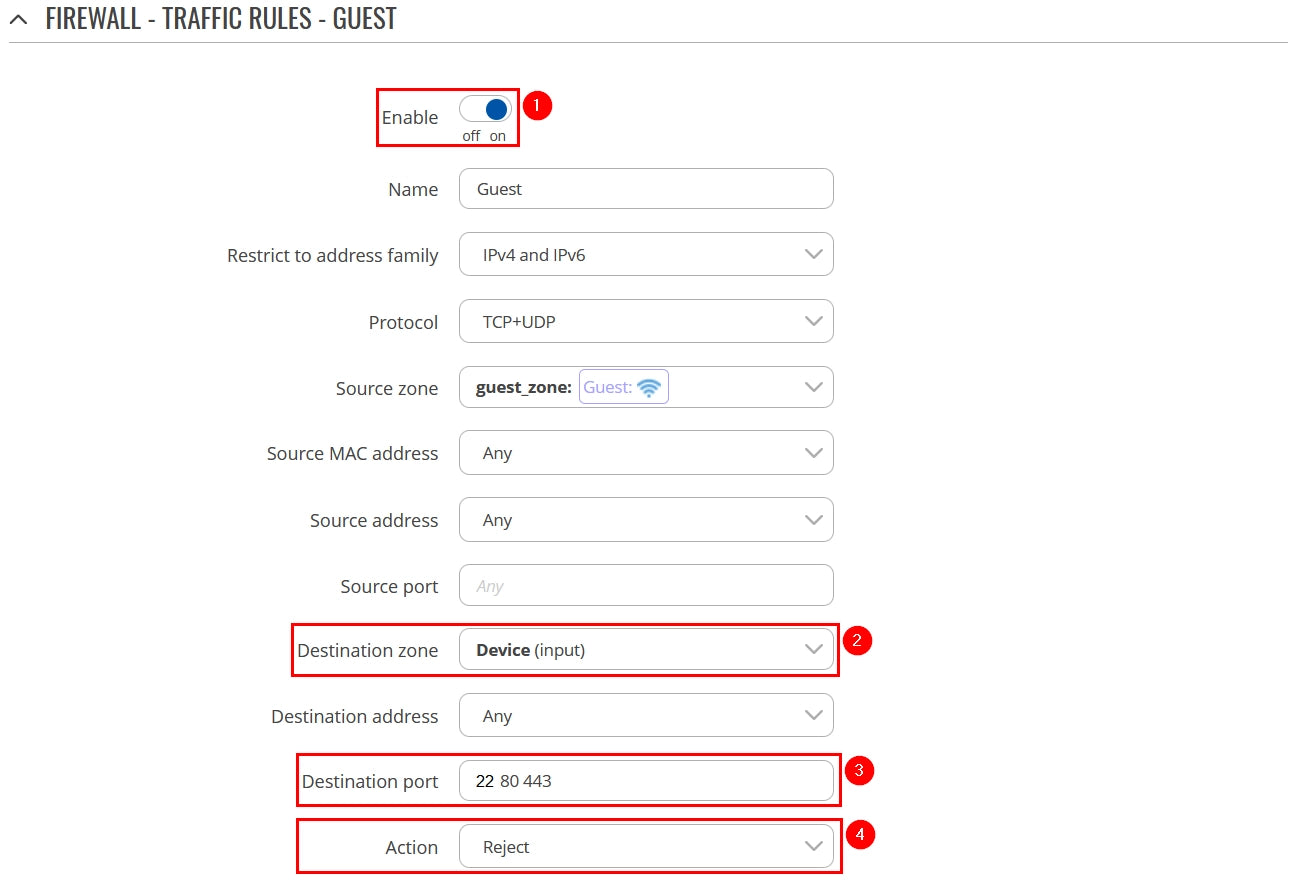

On the TRAFFIC RULES page, do the following:

  1. Activate the instance .
  2. Change the target region to “Device (input)” .
  3. Enter the Destination port to reject. By default, ports 22, 80, 443 are used to access the web UI and SSH.
  4. Change the action to “Reject” .
  5. Save&Apply Changes.
