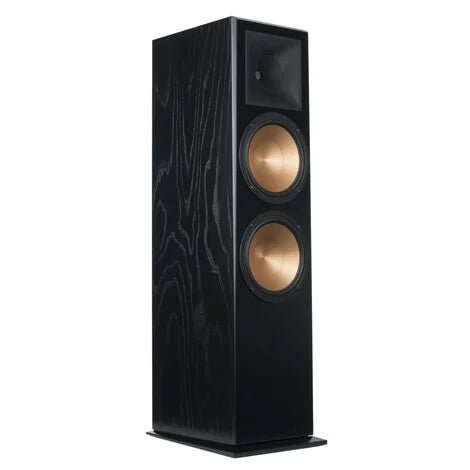

Klipsch RF-7 III Reference Series Passive Hi-Fi Tower Speaker

With its new titanium compression driver , 90×90 compression molded rubber Tractrix horn , redesigned cabinet, cast Cerametallic woofers and the ultimate furniture-grade wood finish , the RF-7 III tower speaker is the new champion of legendary, high-performance Klipsch sound.

WHO IS KLIPSCH?

With 75 years of experience, Klipsch products are one step ahead of their competitors with their eye-catching designs and incredible performance at the same time. Its patented technologies that revolutionized the industry and its mastery in acoustic engineering have created a fan base of the brand.


Highlights

  • New 1 3/4″ Titanium Compression Driver
  • 90×90 Compressed Molded-Rubber Tractrix Horn
  • Redesigned Cabin
  • Dual Tractrix Ports
  • Dual 10″ Cast Cerametallic Low Frequency Drivers
  • Unique Furniture-Grade Wood Finishes
  • Made in Hope, Arkansas

90° X 90° Tractrix® Horn
The redesigned 90×90 Tractrix® Horn uses a circular funnel channel combined with a square-mouth funnel to improve high frequency response and amplification while improving imaging and dynamics . Molded rubber construction softens high frequencies to reduce harshness in sound and increase detail. In this way, the cleanest and most natural sound possible is created.

New Drive Power
1 3/4″ Titanium Diaphragm Compression Driver
The compression driver features a new phase plug design to improve phase consistency at the mouth of the horn by providing improved sound pressure linearity at high frequencies.


Copper Winding Cerametallic™ Low Frequency Drivers
Cerametallic low frequency drivers represent the pinnacle of Klipsch driver designs, providing exceptional stiffness and lightness with minimal cone distortion and distortion.
It provides best-in-class speaker efficiency when paired with a Tractrix horn-loaded compression driver.

New Dual Bay + Tractrix® Port
The new cabinet of the RF-7 III allows each 10″ drive and port to operate independently of each other. This adds to the linearity of each drive system, and minimizes standing wave problems that can cause significant mid-frequency anomalies in the cabinet.
Using Tractrix geometry, the new RF-7 III ports allow the most efficient air transfer in the cabinet for the cleanest , strongest low frequency responses.


Cast Frame Low Frequency Driver Design
Each 10″ woofer has a durable cast aluminum frame for resonant-free operation . In addition, each woofer incorporates a double ring magnetic structure design to eliminate modulation of magnetic flux and increase linearity of cone motion.

Furniture Grade Wood Lacquer
The RF-7 III tower speaker cabinets feature a furniture-grade wood finish.

TECHNICIAL SPECIFICATIONS

COLOUR

Walnut Tree, Cherry Tree, Black

FREQUENCY RANGE

32–25kHz +/– 3dB

POWER USE

250W / 1000W peak

SOUND LEVEL

100dB@2.83V/1M

NOMINAL IMPEDANS

8 ohms compatible

HIGH FREQUENCY HORN

8.5” square 90 ̊ x 90 ̊ Tractrix® Horn

HIGH FREQUENCY DRIVE

1.75” (4.45cm) titanium diaphragm compressor driver

TRANSITION FREQUENCY

1,300Hz

LOW FREQUENCY DRIVE

2 x 10” (25.4cm) Cerametallic cone woofers

INPUTS

Dual port / bi-wire / bi-amp

COATING TYPE

Dual-chamber, bass-reflex – rear-fired via dual Tractrix ports

City / County : YÜKSEKLIK /

49” (124.5cm)

WIDTH

13.875” (35.2cm)

DEPTH

17,875” (45.4cm)

WEIGHT

97 Ibs (44.1kg)

Klipsch RF-7 III Reference Series Passive Hi-Fi Tower Speaker (Dual) Black

SKU: KL-1064559

TESKF (Recommended End User Price) is shown. The price does not include VAT. Pricing offered by Bircom may vary.

Tax included.
